$2.5984-8.3637 /Meter
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CFR,CIF,EXW |
| أدني كمية الطلب: | 59000 Meter |
| نقل: | Ocean,Land |
| ميناء: | Qingdao,Tianjin,Rizhao |
مكان المنشأ: الصين
مواد: PVC

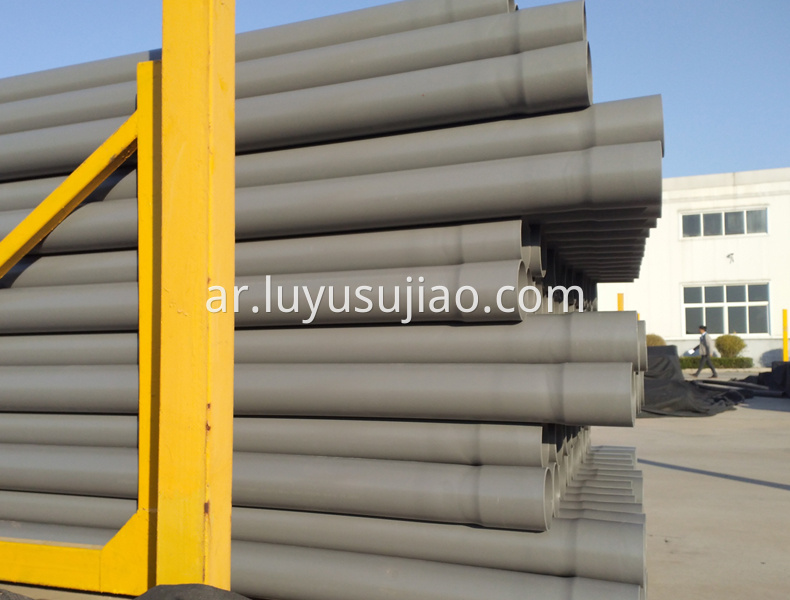

اسم المنتج: PVC-U pipe
Usage Application: water supply,irrigation,drainag
Specification: DN20-DN710mm
Length: 5.8m
Connection: Socket with glue Joint, Butt Fusion
Brand Name: LUYU
التعبئة: Standard Packing
| بيع الوحدات | : | Meter |
The file is encrypted. Please fill in the following information to continue accessing it
| Outside Diameter(mm) | 0.63MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa |
| Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) |
Thickness
(mm)
|
|
| 20 | 1.5 | 2.0 | ||||
| 25 | 1.5 | 2.0 | ||||
| 32 | 1.6 | 2.0 | 2.4 | |||
| 40 | 2.0 | 2.4 | ||||
| 50 | 2.0 | 2.4 | 3.0 | |||
| 63 | 2.0 | 2.5 | 3.0 | 3.8 | ||
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | ||
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | ||
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | ||
| 125 | 3.1 | 3.9 | 4.8 | 6.0 | ||
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | ||
| 160 | 4.0 | 4.9 | 6.2 | 7.7 | ||
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | ||
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | ||
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | ||
| 250 | 6.2 | 7.7 | 9.6 | 11.9 | ||
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | ||
| 315 | 7.7 | 9.7 | 12.1 | 15.0 | ||
| 355 | 8.7 | 10.9 | 13.6 | 16.9 | ||
| 400 | 9.8 | 12.3 | 15.3 |
| Outside Diameter(mm) | 0.63MPa | 0.8MPa | 1.0MPa | 1.25MPa |
| Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | |
| 63 | 2.0 | 2.5 | 3.0 | 3.8 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 |
| 125 | 3.1 | 3.9 | 4.8 | 6.0 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 |
| 160 | 4.0 | 4.9 | 6.2 | 7.7 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 |
| 250 | 6.2 | 7.7 | 9.6 | 11.9 |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 |
| 315 | 7.7 | 9.7 | 12.1 | 15.0 |
| 355 | 8.7 | 10.9 | 13.6 | 16.9 |
| 400 | 9.8 | 12.3 | 15.3 | |
| 450 | 11.0 | 13.8 | 17.2 | |
| 500 | 12.3 | 15.3 | 19.1 | |
| 630 | 15.4 | 19.3 | 24.1 | |
| 710 | 17.4 | 21.8 | 27.2 |
