$12.367-45.1124 /Meter
| الدفع نوع: | L/C,T/T |
| إنكوترم: | FOB,CFR,CIF |
| أدني كمية الطلب: | 1200 Meter |
| نقل: | Ocean |
| ميناء: | Qinghdao |
مكان المنشأ: الصين
مواد: PVC
خدمة المعالجة: صب, قطع
Product Applications: ndustrial, Mining Areas, Ports

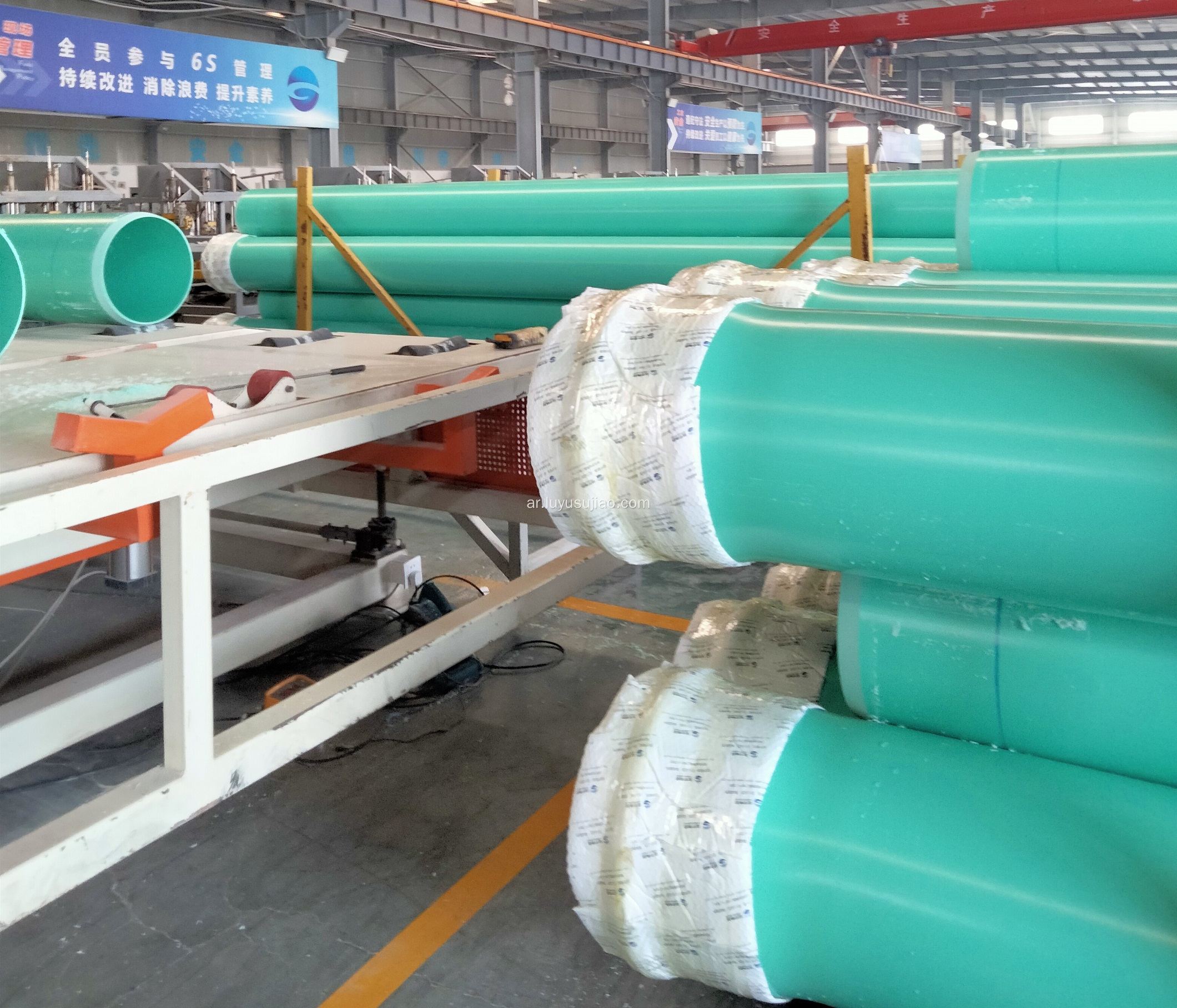

اسم المنتج: PVC-UH Water and Drainage Pipe
Nominal Pressure: SN2/SN4/SN8/SN12.5/SN16
Length: 5.8M,or at request
Feature: Light Weight,Durable,High Pressure,Corrosion resistance
تطبيق الاستخدام: الصرف
Brand Name: LUYU
| بيع الوحدات | : | Meter |
The file is encrypted. Please fill in the following information to continue accessing it
| Norminal diameter (mm) | SDR51 0.32MPa（SN2) | SDR41 0.4MPa（SN4) | SDR34 0.5MPa（SN8) | SDR28 0.6MPa（SN12.5) | SDR26 0.63MPa（SN16) |
| Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | |
| 110 | 3.2 | 3.2 | 4.0 | 4.2 | |
| 125 | 3.2 | 3.7 | 4.5 | 4.8 | |
| 160 | 3.2 | 4.0 | 4.7 | 5.8 | 6.2 |
| 200 | 3.9 | 4.9 | 5.9 | 7.2 | 7.7 |
| 250 | 4.9 | 6.2 | 7.3 | 9.0 | 9.6 |
| 315 | 6.2 | 7.7 | 9.2 | 11.3 | 12.1 |
| 355 | 7.0 | 8.7 | 10.4 | 12.7 | 13.6 |
| 400 | 7.9 | 9.8 | 11.7 | 14.3 | 15.3 |
| 450 | 8.8 | 11.0 | 13.2 | 16.1 | 17.2 |
| 500 | 9.8 | 12.3 | 14.6 | 17.9 | 19.1 |
| 630 | 12.3 | 15.4 | 18.4 | 22.5 | 24.1 |
| 710 | 13.9 | 17.4 | 20.9 | 25.4 | 27.2 |
| 800 | 15.7 | 19.6 | 23.5 | 28.6 | 30.6 |
| 900 | 17.6 | 22.0 | 26.5 | 32.2 | 34.4 |
| 1000 | 19.6 | 24.5 | 29.5 | 35.8 | 38.2 |
| 1200 | 23.5 | 29.4 | 35.3 | 42.9 | 45.9 |
| 1400 | 27.4 | 34.3 | 41.2 | ||
| 1600 | 31.3 | 39.2 |
