$0.763-199.7382 /Meter
| الدفع نوع: | L/C,T/T,D/P |
| إنكوترم: | FOB,CFR,CIF,EXW |
| أدني كمية الطلب: | 1000 Meter |
| نقل: | Ocean |
| ميناء: | Qingdao |
مكان المنشأ: الصين
مواد: PVC
خدمة المعالجة: صب, قطع

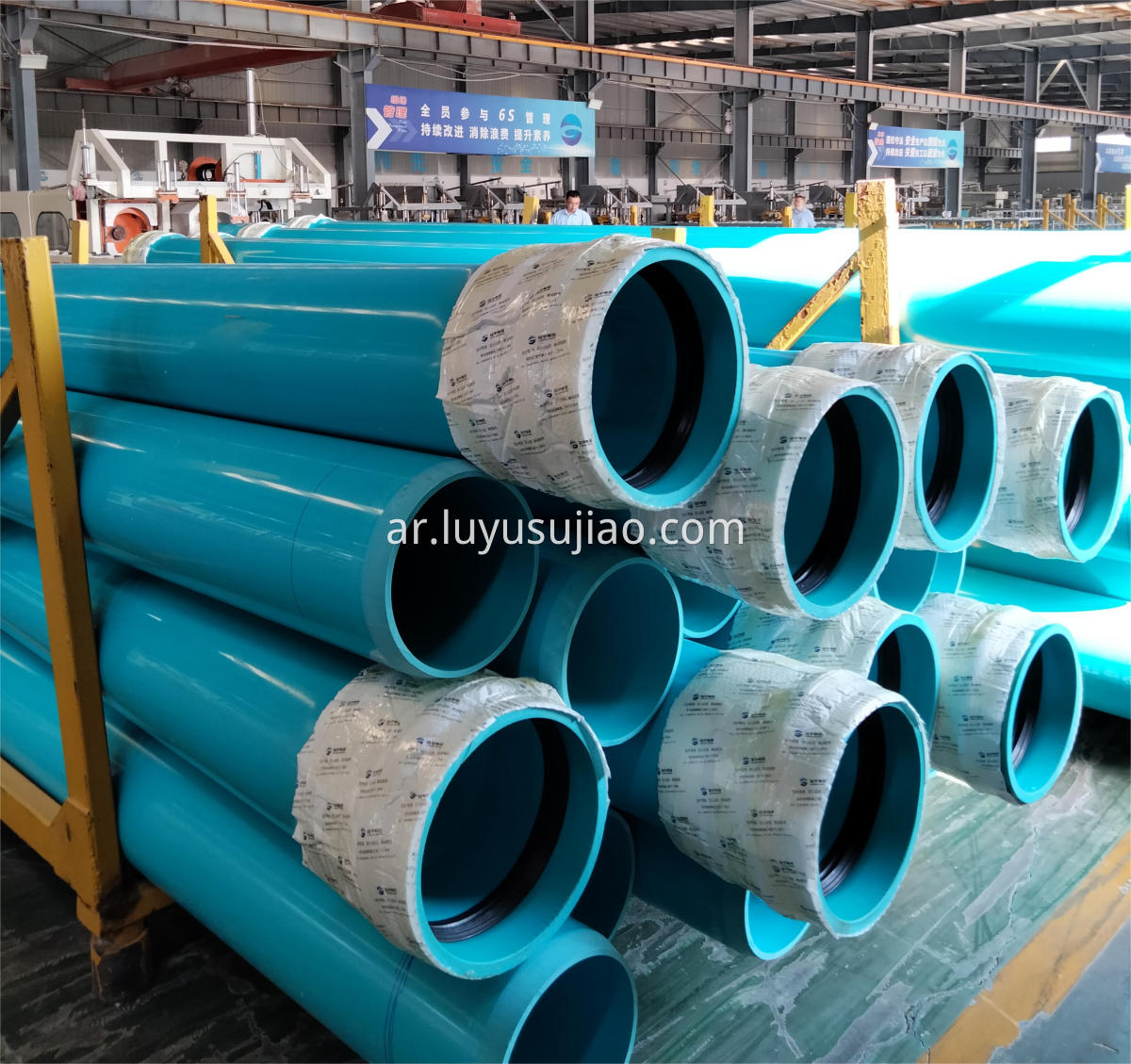

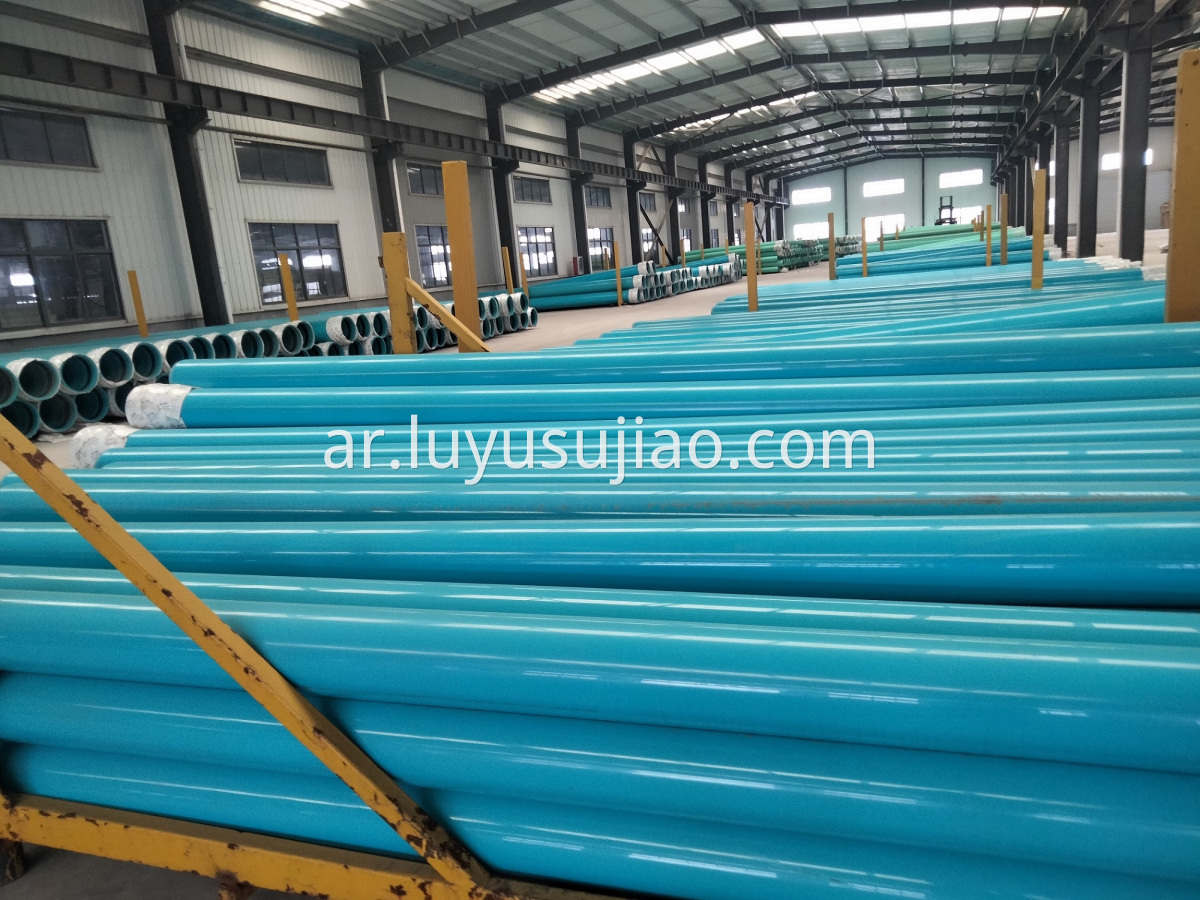

اسم المنتج: PVC-UH pipe
Product Applications: ndustrial, Mining Areas, Ports
Length: 5.8M,or at request
معيار: ISO
Specification: DN50-DN1600mm
Usage Applicatio: Water Supply System
| بيع الوحدات | : | Meter |
The file is encrypted. Please fill in the following information to continue accessing it
| Outside Diameter(mm) | 0.63MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa |
| Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | |
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | |
| 63 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.60 | 8.10 | 10.0 |
| 125 | 3.1 | 3.9 | 4.8 | 6.0 | 7.40 | 9.20 | 11.4 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.30 | 10.30 | 12.7 |
| 160 | 4.0 | 4.9 | 6.2 | 7.7 | 9.50 | 11.80 | 14.6 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.70 | 13.30 | 16.4 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.90 | 14.70 | 18.2 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.40 | 16.60 | 20.5 |
| 250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.80 | 18.40 | 22.7 |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.60 | 20.60 | 25.4 |
| 315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.70 | 23.20 | 28.6 |
| 355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.10 | 26.10 | 32.2 |
| 400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.70 | 29.40 | 36.3 |
| 450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.70 | 33.10 | 40.9 |
| 500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.70 | 36.80 | 45.4 |
| 560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.20 | 41.20 | |
| 630 | 15.4 | 19.3 | 24.1 | 30.0 | 37.40 | 46.30 | |
| 710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.10 | 52.20 | |
| 800 | 19.6 | 24.5 | 30.6 | 38.1 | 47.40 | ||
| 900 | 22.0 | 27.6 | 34.4 | 42.9 | 53.30 | ||
| 1000 | 24.5 | 30.6 | 38.2 | 47.7 | |||
| 1200 | 29.4 | 36.7 | 45.9 | ||||
| 1400 | 34.3 | 42.9 | 53.5 | ||||
| 1600 | 39.2 | 49.0 |
