$0.2509-43.863 /
| أدني كمية الطلب: | 1 |
| نقل: | Ocean,Land,Air |
| ميناء: | Qingdao,Tianjin,Yantai |
الظل:
مكان المنشأ: الصين
مواد: PE
خدمة المعالجة: صب, قطع

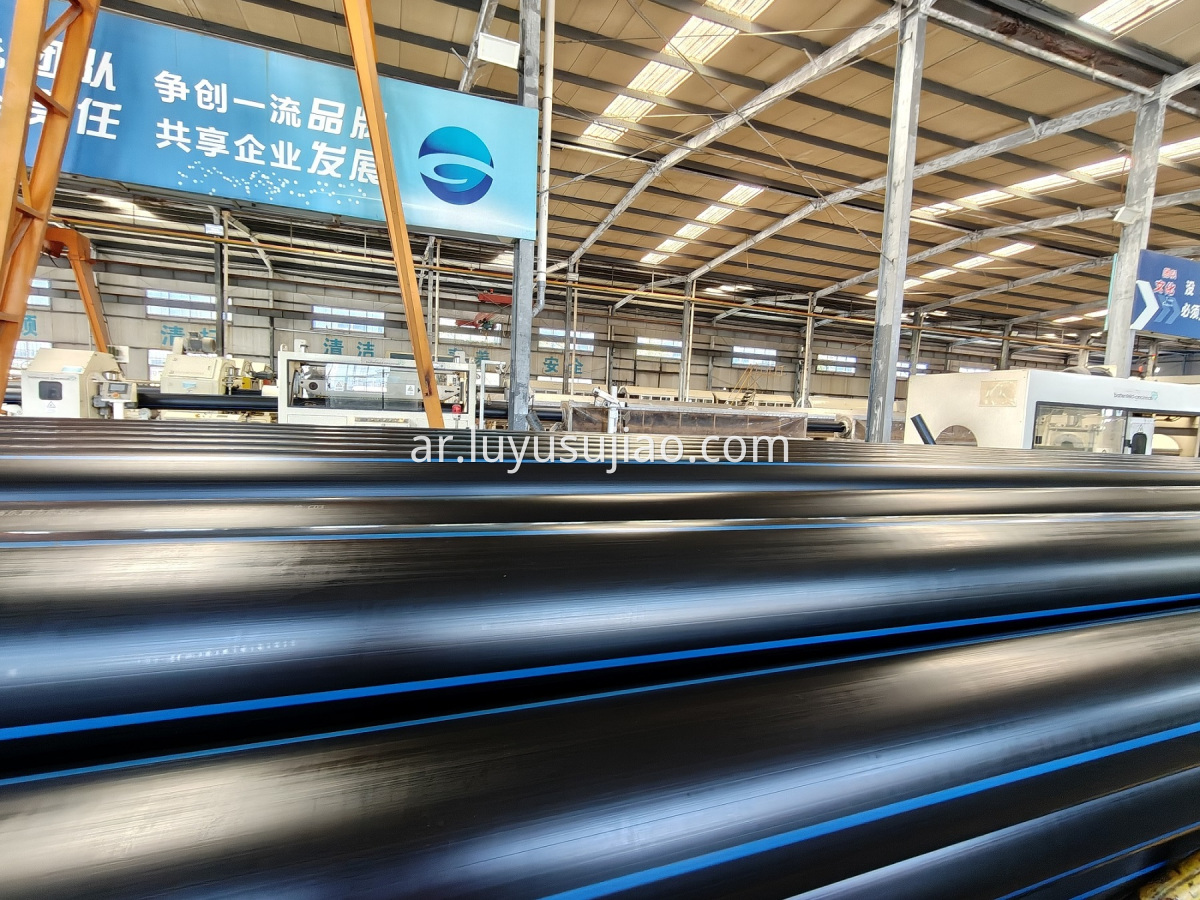

اسم المنتج: PE Water Pipe
Brand Name: LUYU
Color: Black with blue stripe or as required
Working Pressure: 0.6MPa ~ 2.0MPa
Specification: dn20mm~dn1200mm
Usage Application: Water Supply,industry agriculture
Connection: Socket Fusion, Butt fusion, Electric Fusion
Raw Material: 100% virgin HDPE granules
التعبئة: Standard Packing
| نوع الحزمة | : | التعبئة القياسية |
The file is encrypted. Please fill in the following information to continue accessing it
| Outside | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa |
| Diameter | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) |
| Dn(mm) | ||||||
| 20 | 2 | 2.3 | 2.3 | |||
| 25 | 2.3 | 3 | ||||
| 32 | 2.3 | 2.4 | 3 | 3.6 | ||
| 40 | 2.4 | 3 | 3.7 | 4.5 | ||
| 50 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |
| 63 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 |
